Description
- Does it include wireless functionality?: No
- Does it include a Battery?: No
- EU LVD Voltage: High voltage: Above 50Vac or 75Vdc
- High-concerned chemical: none
- Type: Voltage protector
- Type: Voltage relay
- Model Number: TOSVA-16 EU
- is_customized: Yes
- Brand Name: TOMZN
- Is Smart Device: no
- Rated Voltage: 220V
- Origin: Mainland China
- Certification: CE
General

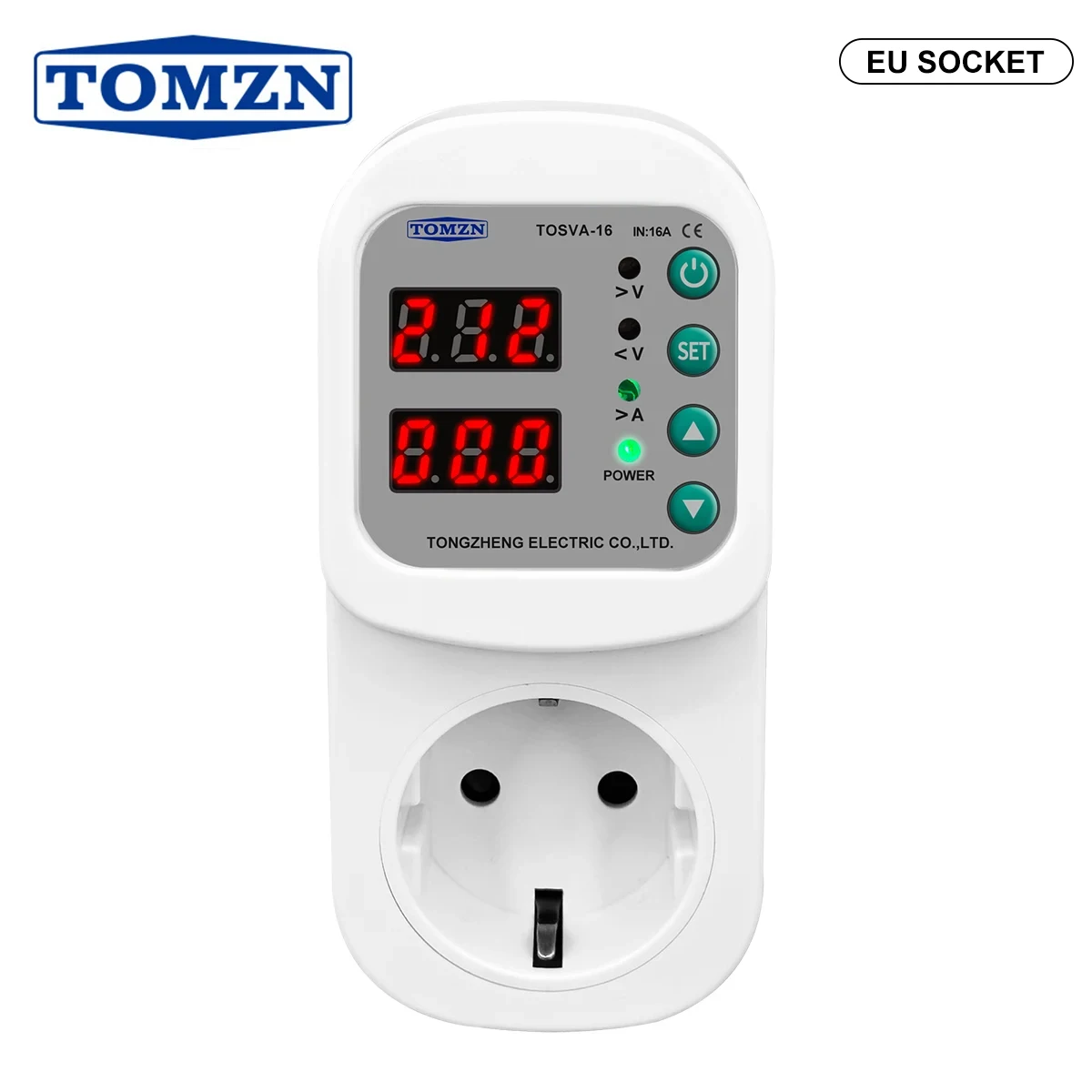

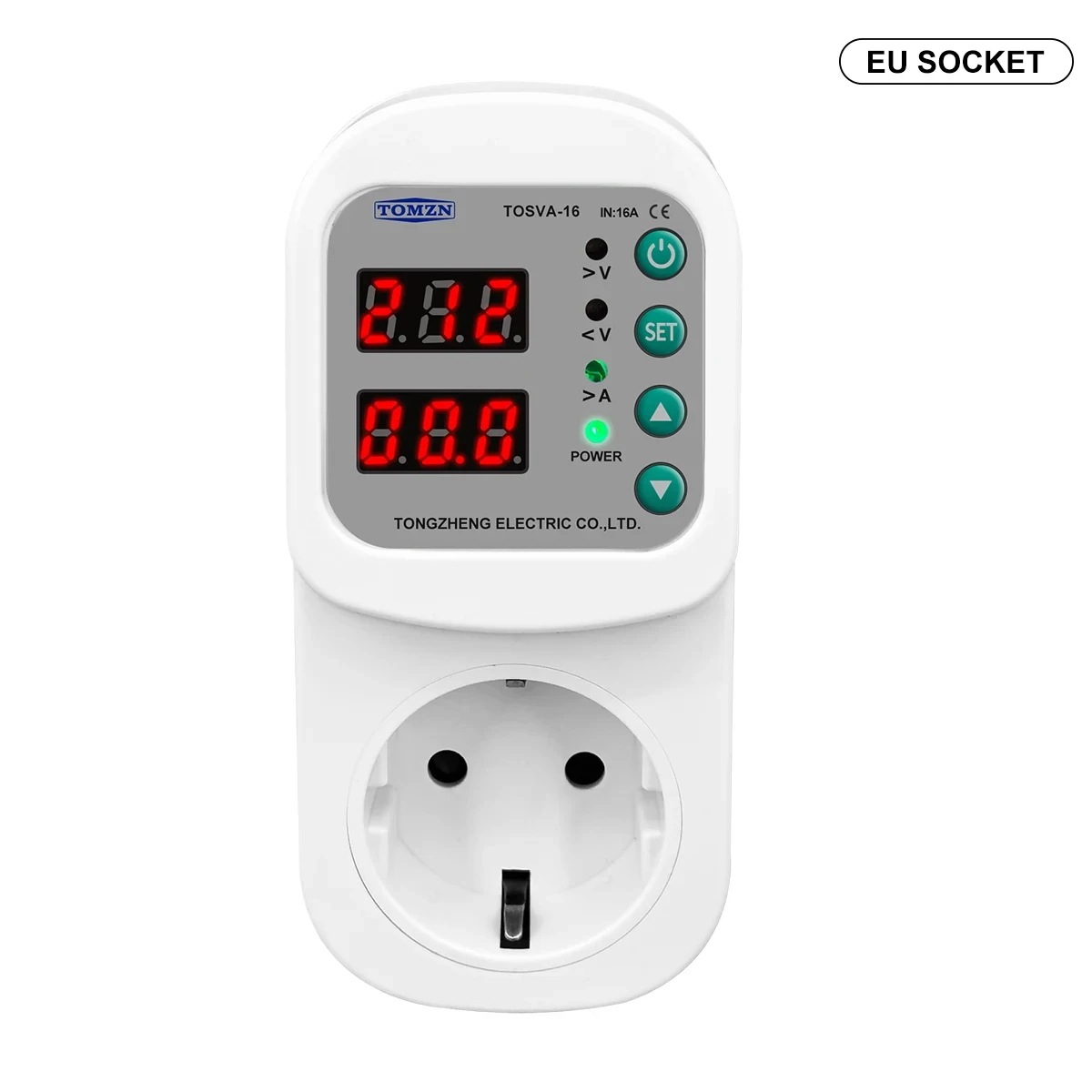

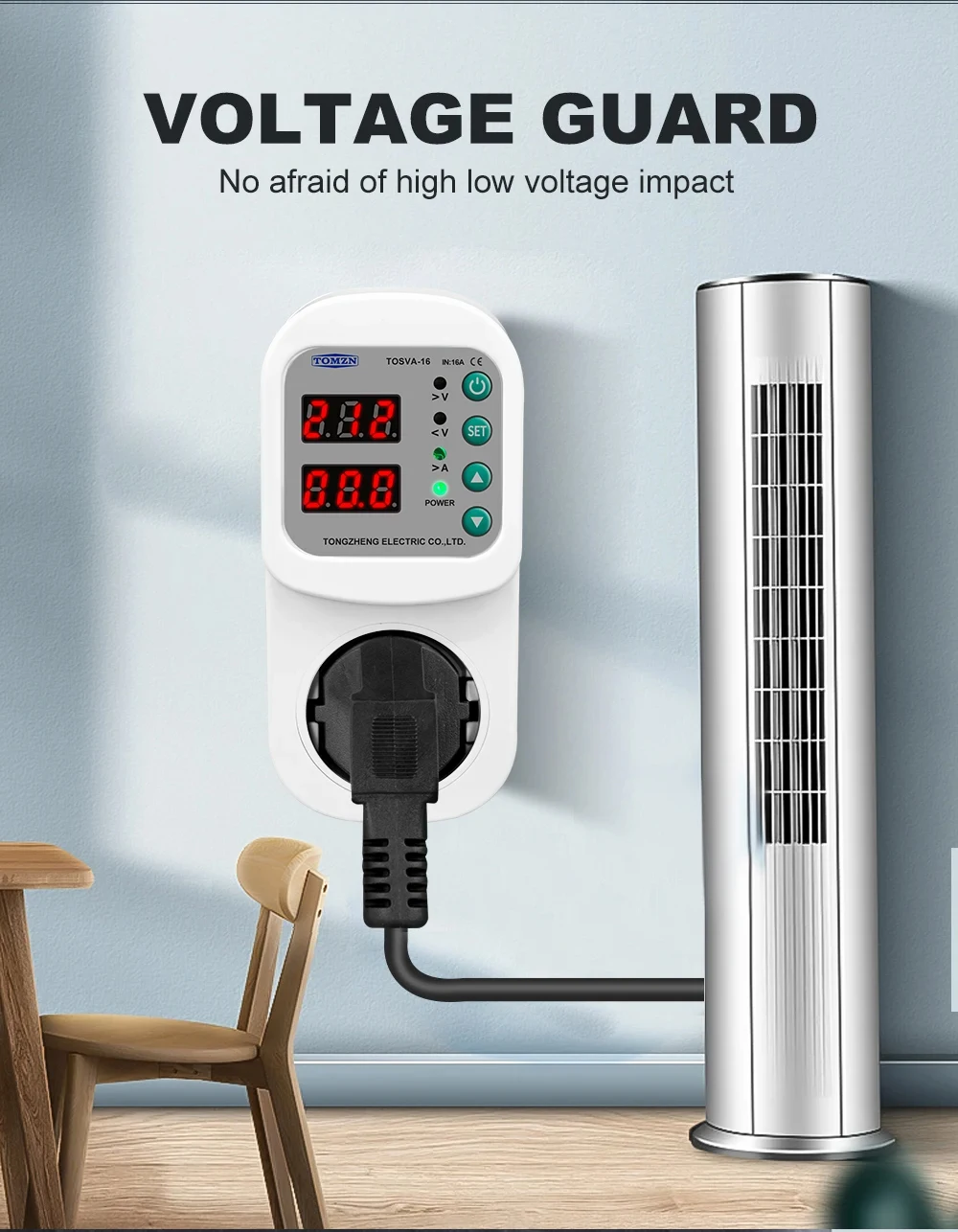

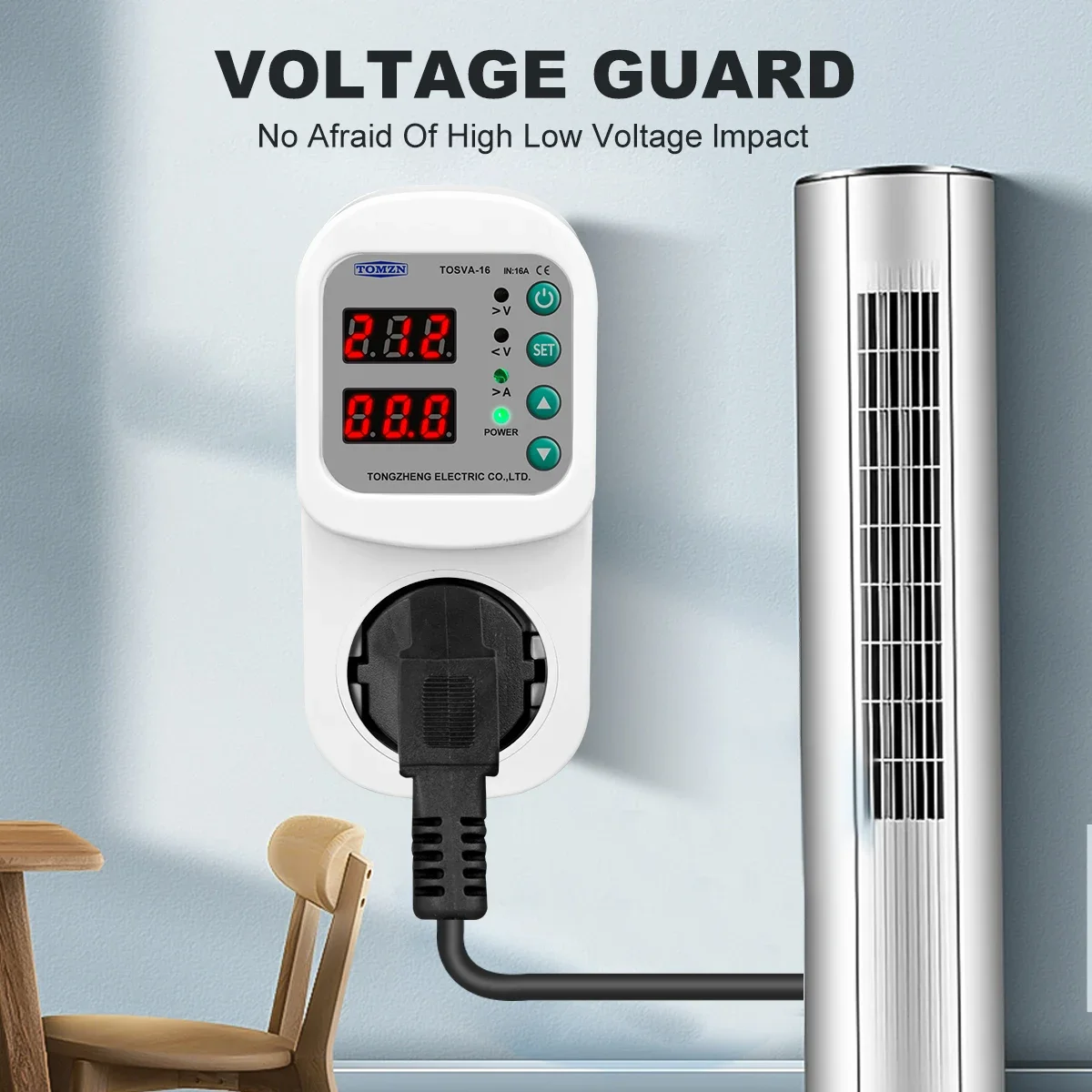

TOSVA-16 is a high-end smart power protection socket that integrates comprehensive protection, status monitoring, and fully customizable parameters. Designed for electrical appliances and equipment sensitive to power quality—such as home electronics, office devices, and industrial controls—it ensures reliable operation and safety.
Functions
1.Over-voltage protection
2.Under-voltage protection

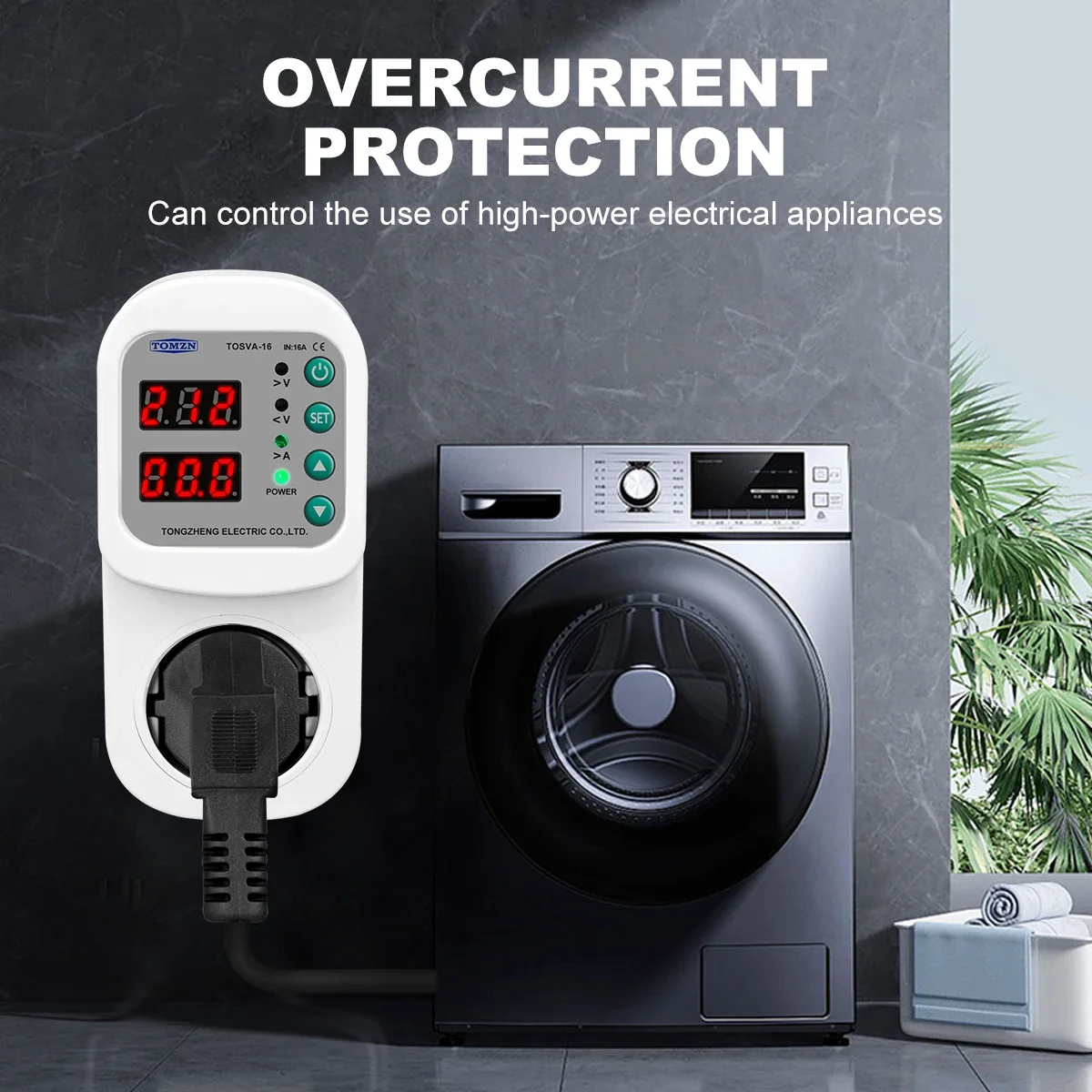

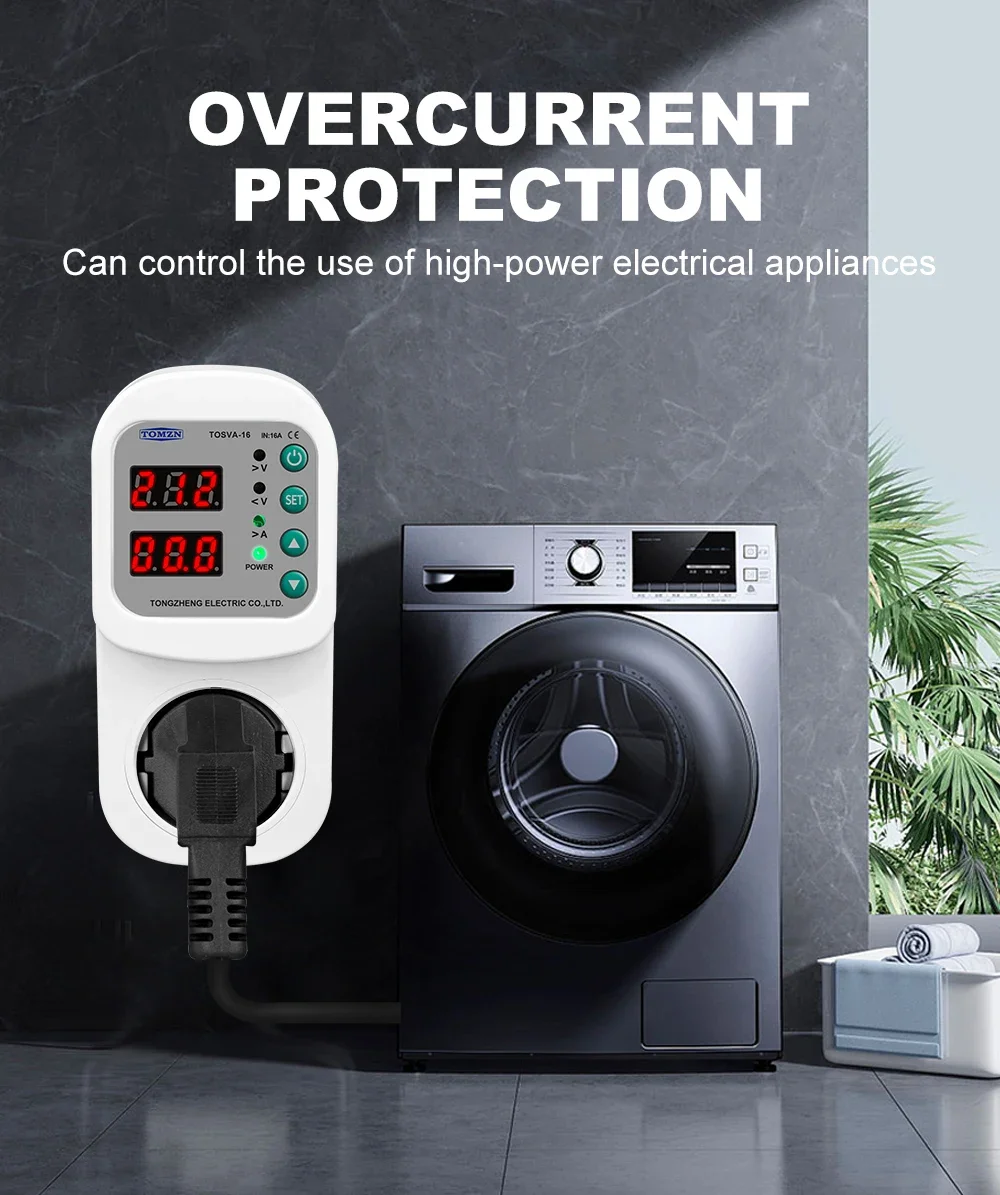

3.Over-current protection
4.Automatic recovery

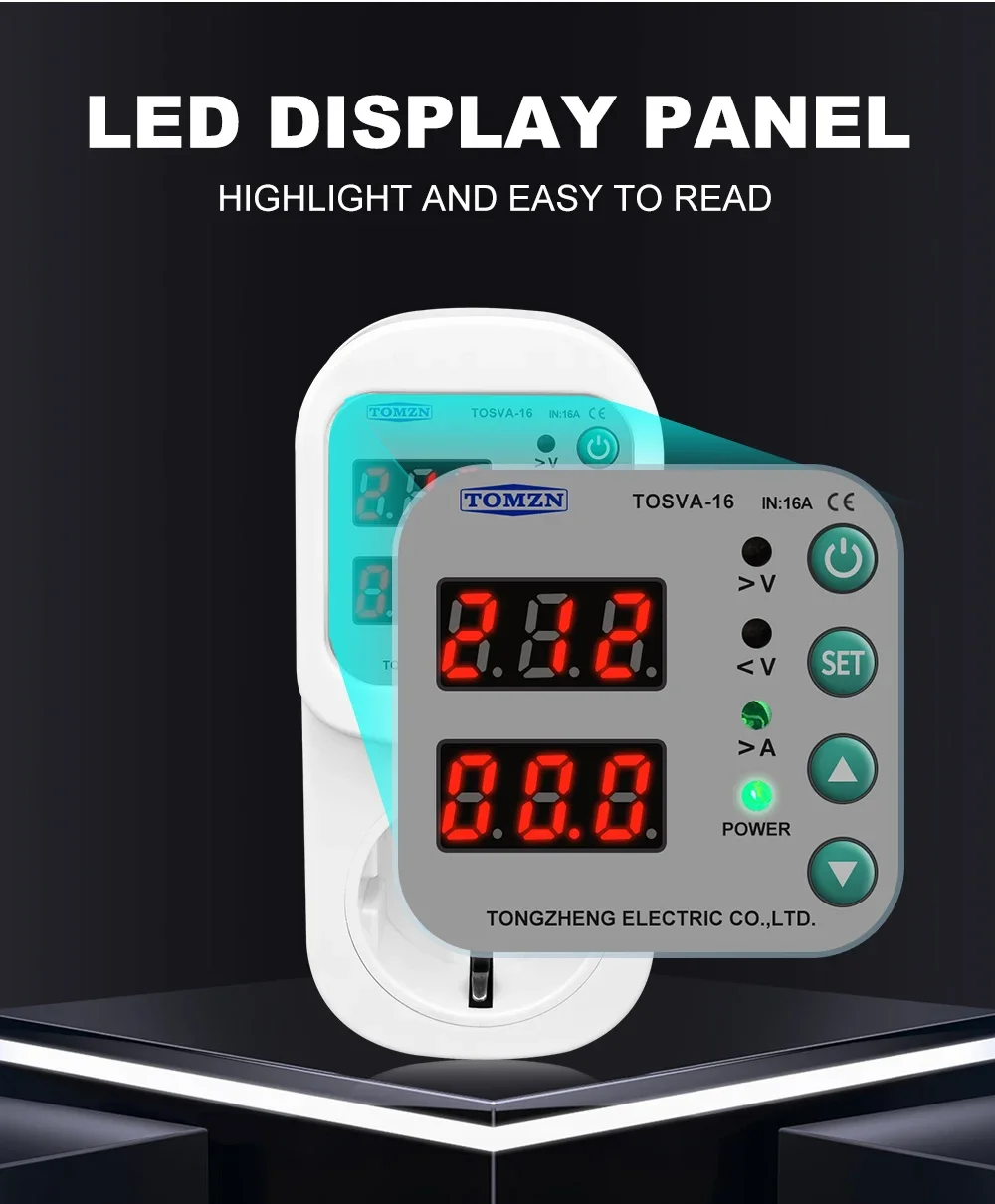

5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-9.5% adjustable.
8. Restore factory settings: press the down button for more than 12s
9. Fault inquiry: Press the UP button from more than 12S

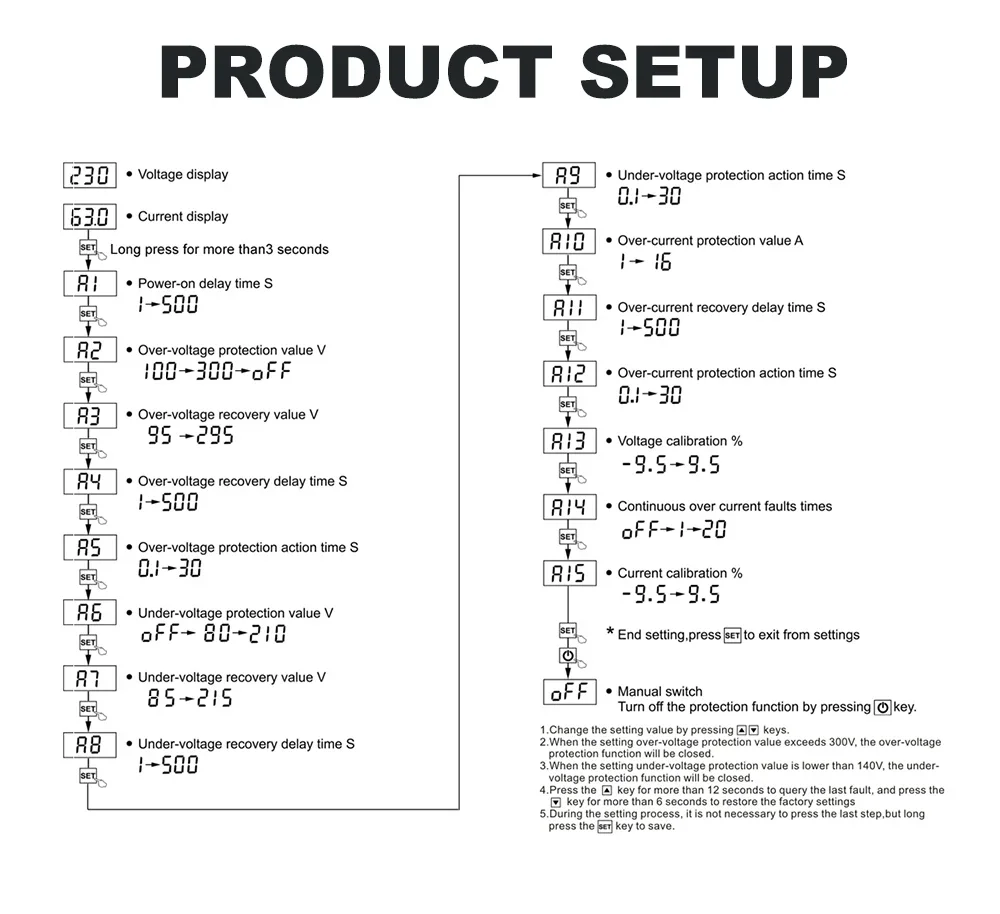

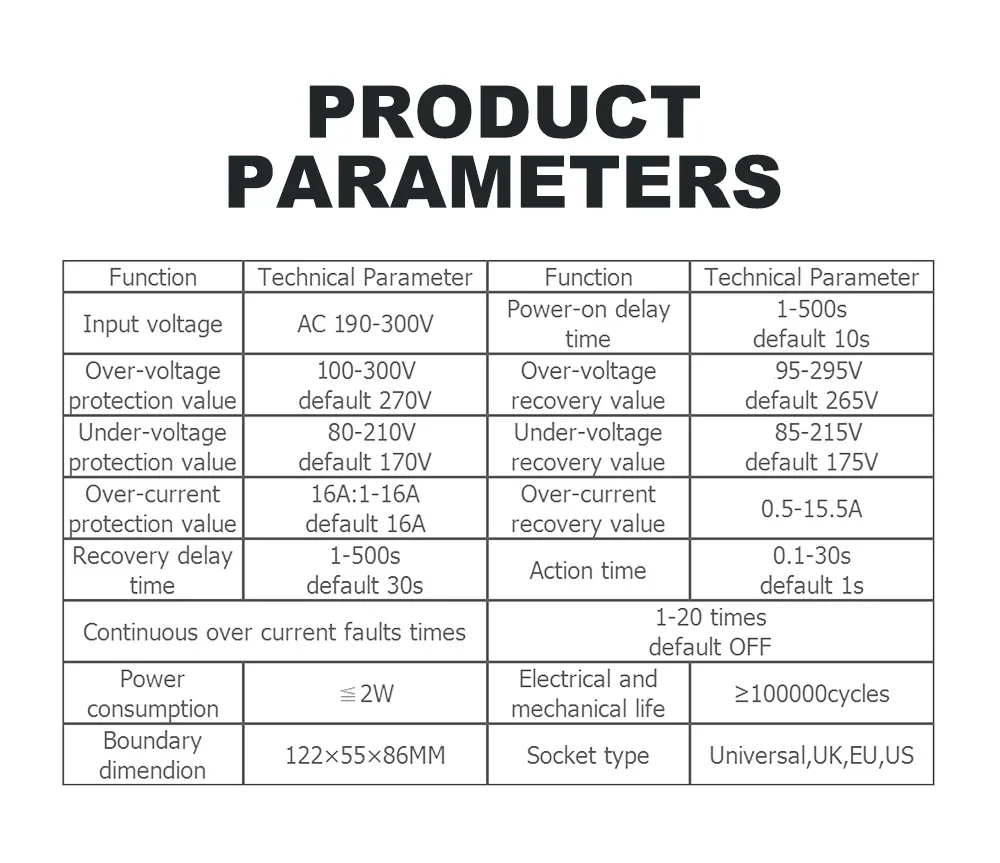

Product Parameters
1.Model number:TOSVA-16
2.Power supply:90-300VAC 50/60Hz
3.Max.Loading power: 1~16A Adjustable(default:16A)
4.Over-voltage protection value range:100V~300~OFF(default:270V)
Over-voltage recovery voltage range: 95V–295V(default:265V)
Over-voltage protection action time:1s~30s(default value:1s)
Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:80V–210V –OFF(default:170V)
Under-voltage recovery voltage range:85V–215V (default:175V)
Under-voltage protection action time:1s~30s(default:1s)
Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-16A (default:16A)
Over-current action range:0.1~30 second (default:0.5s)
Over-current recovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
8.Power consumption : <2W
9.Electric machinery life : 100,000 times
